Medical Oxygen Generator

Medical Oxygen Generators which can provide uninterrupted high purity oxygen gas based on the demand. These oxygen generators works on the principle of Pressure Swing Adsorption (PSA) and it can save a lot of energy spent in the conventional Cryogenic Oxygen Generation plants. These PSA based Medical Oxygen Generators can create sufficient oxygen for a person or a group of people to use immediately, and these units are in widespread usage for onsite oxygen in hospitals and health care areas, with the advantage of being continuous supply without the need for additional deliveries of bulky cylinders.

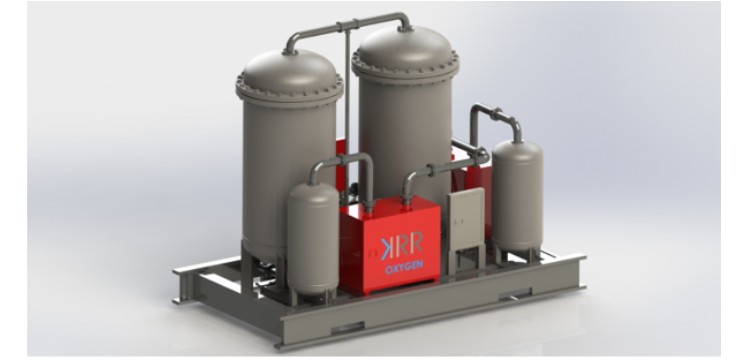

Medical Oxygen Generator works on the principle of Pressure Swing Adsorption, widely termed as PSA. This conventional gas separation technology is being used to separate Oxygen from the Compressed air. The major components ore a pair of Adsorbent vessels, Surge tank, Switching valves, Intelligent PLC, Oxygen analyzer, and instruments. The adsorbent vessels filled with Zeolite preferentially adsorbs Nitrogen and CO2 whereas Oxygen is not adsorbed by Zeolite due to its larger molecular she and posses through the Adsorbed to the surge tank. Based on the pressed time interval the online adsorber switches to generation mode and Adsorbed gas from Zeotte ore purged out to the atmosphere. During this operation Oxygen analyzer monitors the oxygen concentration and olio. Oxygen Gas to the storage tank. If oxygen concentration is He than the pm-set value PLC switches the vent voice and purging out the gas till it reaches the required pertly level.

Exclusive Features:

1. Automatic Oxygen generation on demand
2. Highest Purity up to 96%
3. Online purity indication
4. Audio-visual alarms
5. Analog output for remote monitoring Mimic display for PSA functions
6. Few moving parts
7. Activated carbon tower and coalescing filters remove oil up to 0.01mg/m3
8. Automatic off spec vent system
9. Specially Coated Medical Grade Internals

Advantages:

1. Uninterrupted supply of Oxygen
2. Economical to produce
3. Low Mal cost
4. Significant saving over Liquid or bottled gas purchase
5. Integrated skid mounted with air treatment package
6. Safe and convenient over high-pressure cylinders
7. Eliminates production downtime
